This new Hyundai Smartstream G1.6 T-GDi is said to have much better performance along with much lower emissions. The first car to use this engine will be the next-gen Hyundai Sonata.
Hyundai Motor Group has unveiled the world’s first Continuously Variable Valve Duration (CVVD) technology that will be put in future Hyundai and Kia vehicles. This new innovation was revealed at Hyundai Motorstudio Goyang on Wednesday alongside the Smartstream G1.6 T-GDi, the first engine to feature the technology.
Hyundai says the CVVD optimizes both engine performance and fuel efficiency while also being eco-friendly. The valve control technology regulates the duration of valve opening and closing according to driving conditions, achieving a 4% boost in performance and a 5% improvement in fuel efficiency. Furthermore, the technology cuts emissions by 12%.
Until now, an internal combustion engine’s performance and efficiency have been governed by variable valve control technology that adjusts the timing of valve opening and closing and depth of the valve’s opening, with engine power produced through the fuel intake-compression-expansion-exhaustion cycle.
Typical variable valve control technologies manage the timing of the valve’s opening and closing (as in Continuously Variable Valve Timing – CVVT) or control the volume of air admitted by adjusting the depth of the opening (Continuously Variable Valve Lift – CVVL). Previous variable valve control technologies could not regulate valve duration, as the valve’s closing timing was subordinate to opening timing and could not respond to diverse driving situations. CVVD takes the technology in a new direction by adjusting how long a valve is open.
When the car is maintaining a constant speed and requires low engine output, CVVD opens the intake valve from the middle to end of the compression stroke. This helps to improve fuel efficiency by reducing the resistance caused by compression. On the other hand, when engine output is high, such as when the car is driving at a high speed, the intake valve is closed at the beginning of the compression stroke to maximize the amount of air used for the explosion, enhancing torque to improve acceleration.
Hyundai also unveiled a new Smartstream G1.6 T-GDi engine, a V4 gasoline turbo engine which churns out 180 horsepower and 265 Nm of peak torque. The new powertrain is the first to utilize the Group’s new CVVD technology and also features Low-Pressure Exhaust Gas Recirculation (LP EGR) to further optimize fuel efficiency.
The exhaust gas recirculation system returns some of the gas burnt by the engine to the combustion chamber, producing a cooling effect and reducing the emission of nitrogen oxides. The G1.6 T-GDi also features a low-pressure system that redirects the burnt emission gas to the front of the turbocharger compressor, rather than the intake system, to increase efficiency under the high load condition.
Additionally, the new unit has an Integrated Thermal Management System that quickly heats or cools the engine to an optimal temperature, and a strong direct spray system that achieves 350bar, surpassing the 250bar of the previous T-GDi engine. In addition, engine friction is reduced by 34% with the application of low friction moving parts.

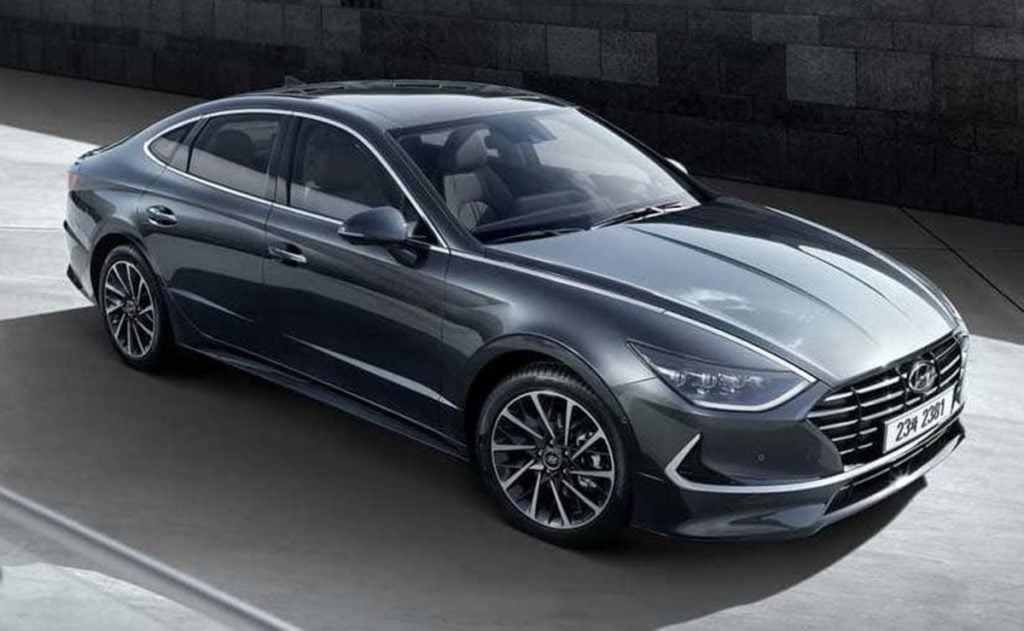

The first car that we will see this engine on is the Hyundai Sonata Turbo, which is set to make its debut in the second half of this year. This premiere will mark the first in a series of new Hyundai and Kia vehicles featuring the engine. Information on first Kia vehicle to feature the engine will be revealed later on near the vehicle’s launch date.
